Information for Strong-Motion Station
Los Angeles - 8-story Hospital
CGS - CSMIP Station 24713
Earthquakes recorded by this station

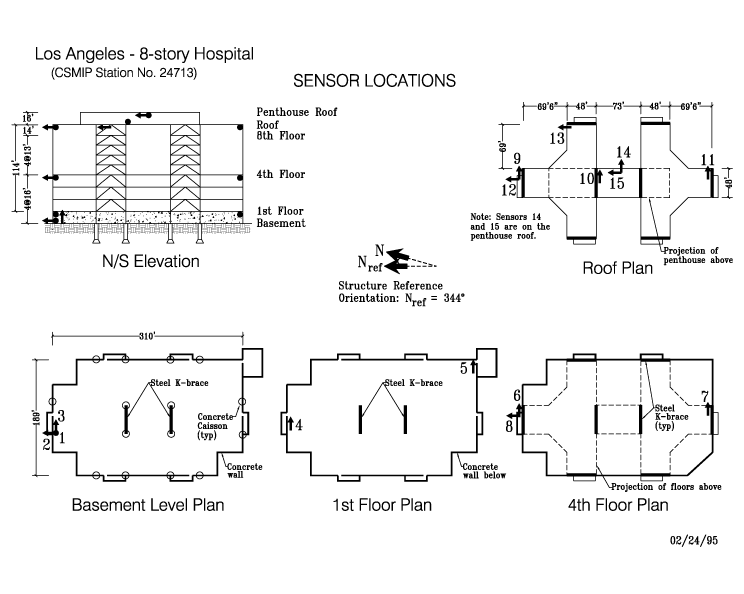

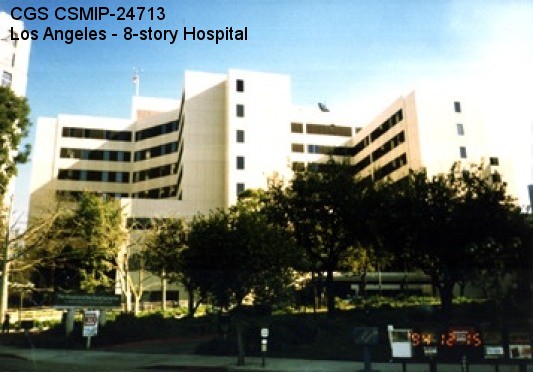

(Station Photograph - click to enlarge)(Sensor Layout - click to see PDF File)

Latitude 34.0547 N
Longitude 118.2651 W
Elevation (m) 107
Site Geology Shallow alluvium over rock (shale)
Vs30 (m/sec) 393 (inferred)
Site Class C
Remarks/Notes Site information sources

No. of Stories above/below ground8/1
Plan ShapeRectangular
Base Dimensions211' x 332'
Typical Floor DimensionsRectangular (1-3), H-shaped (4-8) 211' x 332'
Design Date1974 (HL-5066)
Instrumentation1995. 15 accelerometers, on 5 levels in the building.

Vertical Load Carrying System4.25" or 3.25" light-weight concrete over 3" metal decks supported by steel beams, girders and columns.
Lateral Force Resisting SystemFour steel K-braced frames in each of the two principal directions. In the basement the perimeter braced frame columns are embedded in concrete wall. Composite floor diaphragms transfer the lateral loads to the frames.
Foundation TypeBraced frame columns are supported by 8' diameter 30' deep concrete caissons that are belled to a bearing diameter of 16'. Remaining columns are supported by isolated spread footings.
RemarksThis hospital building was instrumented as part of the OSHPD/CSMIP Hospital Instrumentation Project.
