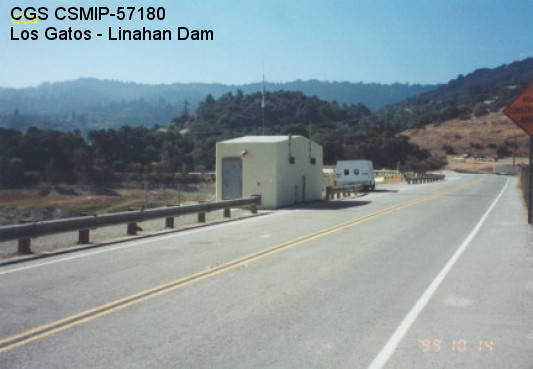

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Los Gatos - Lenihan Dam |
| CGS - CSMIP Station 57180 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.2015 N |
| Longitude | 121.99 W |
| Elevation (m) | 201 |
| Site Geology | Slate & sandstone |
| Vs30 (m/sec) | 1070 |
| Site Class | - |
| No. of Spans | Dam Height 205' (62.5m) |
| Plan Shape | Curved |
| Total Length | -- |
| Width of Deck | Crest Length 810' (246.7m) |
| Construction Date | 1953 |
| Instrumentation | 1985, 9 accelerometers, on crest and abutment. |
| Superstructure Type | -- |
| Substructure Type | Earth dam. |
| Foundation Type | -- |
| Remarks | -- |
