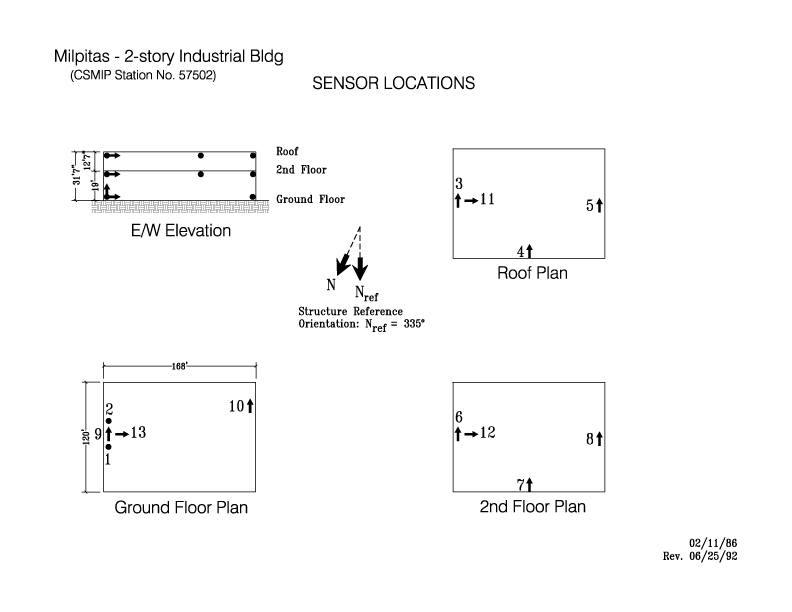

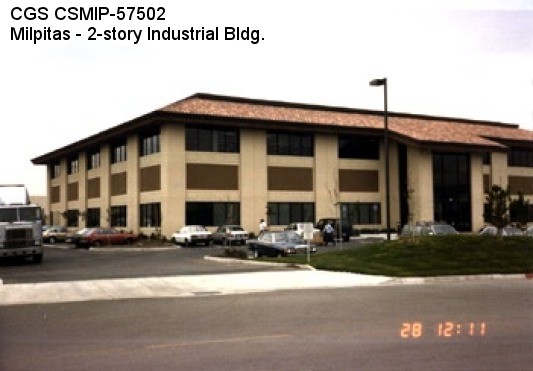

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Milpitas - 2-story Industrial Bldg. |
| CGS - CSMIP Station 57502 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.429 N |
| Longitude | 121.899 W |
| Elevation (m) | -- |
| Site Geology | Alluvium |
| Vs30 (m/sec) | -- |
| Site Class | - |
| No. of Stories above/below ground | 2/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 168' x 120' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1984 |
| Instrumentation | 1986. 13 accelerometers, on 3 levels in the building. |
| Vertical Load Carrying System | Concrete floor over steel decking supported by glulams, truss joists, and steel tube columns. |
| Lateral Force Resisting System | Perforated concrete tilt-up shear walls, concrete floor diaphragms, and plywood roof diaphragms. |
| Foundation Type | Spread footings |
| Remarks | -- |
