| CESMD |
| Information for Strong-Motion Station |
| Saratoga - 1-story Gymnasium |
| CGS - CSMIP Station 58235 |
| Earthquakes recorded by this station |
| |

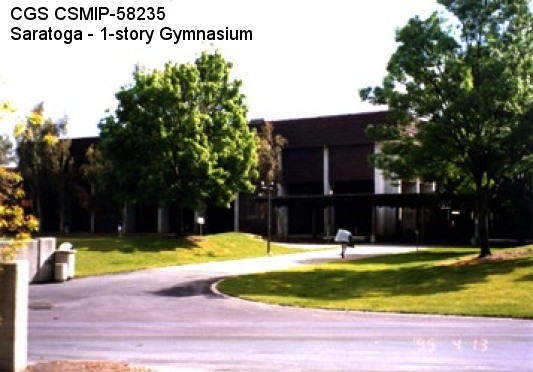

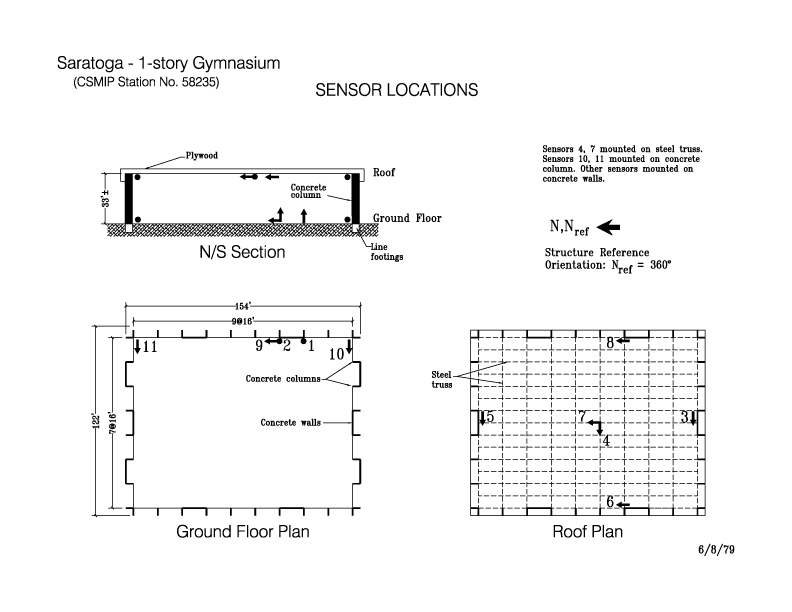

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.2619 N |
| Longitude | 122.01 W |
| Elevation (m) | 116 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 371 |
| Site Class | - |
| No. of Stories above/below ground | "1/0" |
| Plan Shape | Rectangular |
| Base Dimensions | 148' x 112' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1971 |
| Instrumentation | 1976. 11 accelerometers, on 2 levels in the building. |
| Vertical Load Carrying System | 3/8" plywood over T & G sheathing; steel trusses on concrete columns |
| Lateral Force Resisting System | Isolated perimeter RC shear walls |
| Foundation Type | Spread footings |
| Remarks | -- |
