| Information for Strong-Motion Station |
| San Francisco - 12-story Resid. Bldg |
| CGS - CSMIP Station 58412 |
| Earthquakes recorded by this station |
| |

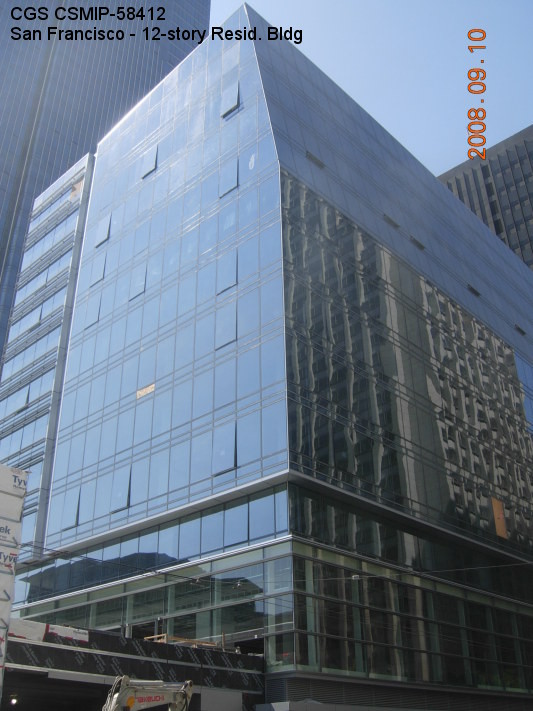

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7908 N |
| Longitude | 122.3957 W |
| Elevation (m) | -- |
| Site Geology | Deep alluvium over rock (Franciscan) |
| Vs30 (m/sec) | 243 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 12/5 |
| Plan Shape | Rectangular |
| Base Dimensions | 183 x 171 ft |
| Typical Floor Dimensions | 130 x 80 ft |
| Design Date | 2006 |
| Instrumentation | 2009, 12 accelerometers, 4 levels. |
| Vertical Load Carrying System | Concrete slab supported by reinforced concrete columns and shear walls. |
| Lateral Force Resisting System | Concrete shear walls at core, as well as perimeter concrete walls at the basement levels. |
| Foundation Type | Reinforced concrete mat foundation that varies between 6' and 8' thick. |
| Remarks | Adjacent 58-story building is also instrumented. |
