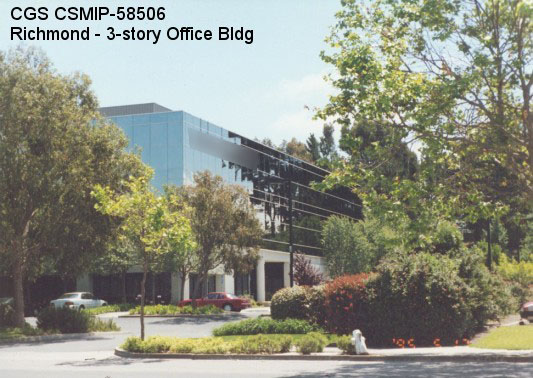

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Richmond - 3-story Office Bldg |
| CGS - CSMIP Station 58506 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.9776 N |
| Longitude | 122.329 W |
| Elevation (m) | 53 |
| Site Geology | Shallow fill over rock (sandstone/siltst) |
| Vs30 (m/sec) | -- |
| Site Class | - |
| No. of Stories above/below ground | 3/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 80' x 165' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1984 |
| Instrumentation | 1986. 12 accelerometers, on 4 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Concrete over steel decking supported by steel frames. |
| Lateral Force Resisting System | Perimeter moment reisting steel frames. |
| Foundation Type | Concrete pile caps at each column (precast, prestressed piles) with grade beams |
| Remarks | -- |
