| CESMD |
| Information for Strong-Motion Station |
| Hemet - 4-story Hospital |
| CGS - CSMIP Station 12267 |
| Earthquakes recorded by this station |
| |

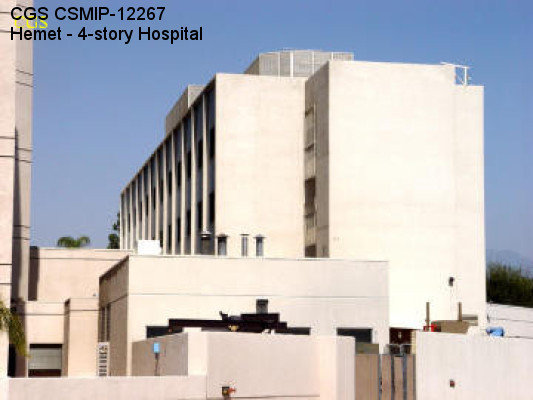

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 33.7499 N |
| Longitude | 116.9601 W |
| Elevation (m) | 491 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 217 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 4/1 |
| Plan Shape | Rectangular |
| Base Dimensions | 156' x 45'-9" |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1965 |
| Instrumentation | 1976. 10 accelerometers, on 3 levels in the building |
| Vertical Load Carrying System | 5" RC slab on 12" x 24" RC beams running in transverse direction; beams supported by interior and exterior RC columns. |
| Lateral Force Resisting System | RC shear-wall around stairs at end walls, around elevator shafts near center of plan, and along south longitudinal face. |
| Foundation Type | RC spread footings |
| Remarks | -- |
