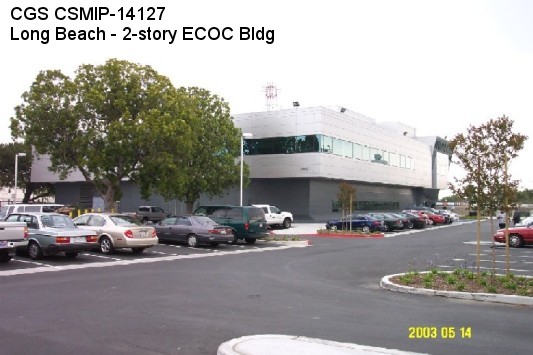

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Long Beach - 2-story ECOC Bldg |
| CGS - CSMIP Station 14127 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 33.8101 N |
| Longitude | 118.1501 W |
| Elevation (m) | 13 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 320 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 2/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 148 x 124 ft (45.1 x 37.8 m) |
| Typical Floor Dimensions | 148 x 124 ft (45.1 x 37.8 m) |
| Design Date | 2001 |
| Instrumentation | 2003, 14 accelerometers in the building and 3 at free-field. |
| Vertical Load Carrying System | Concrete slabs on metal decks supported on steel beams and columns. |
| Lateral Force Resisting System | Concentrically braced steel frames isolated by 24 rubber bearings. |
| Foundation Type | Concrete spread footings with grade beams. Drilled concrete pier foundation for the braced steel frames. |
| Remarks | This building houses the Long Beach Emergency Communications and Operations Center |
