| CESMD |
| Information for Strong-Motion Station |
| Long Beach - 5-story CSULB Engnrng Bldg |
| CGS - CSMIP Station 14311 |
| Earthquakes recorded by this station |
| |

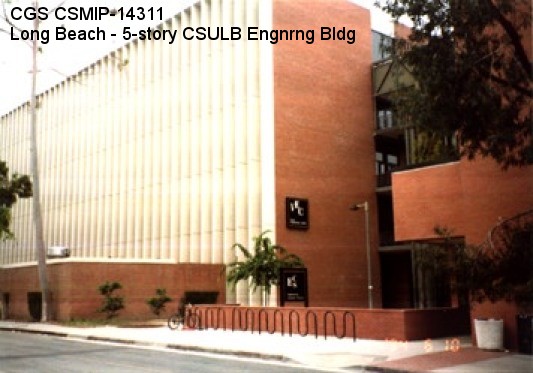

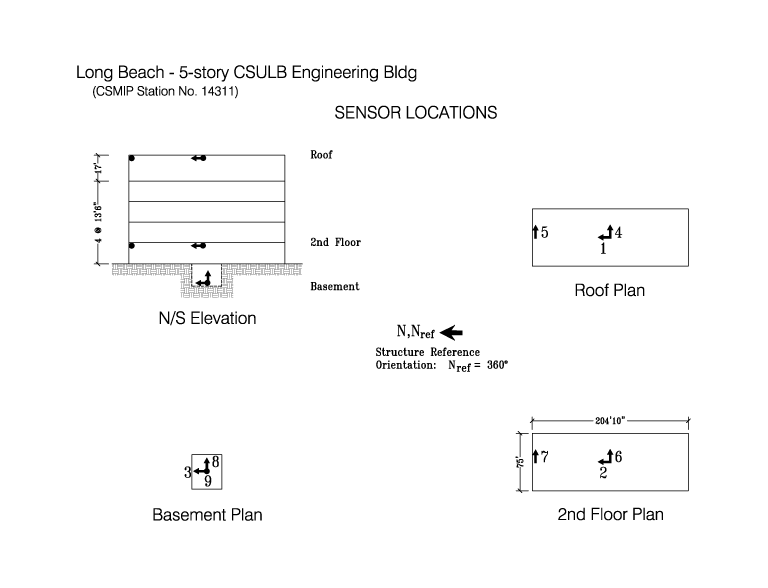

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 33.7828 N |
| Longitude | 118.1104 W |
| Elevation (m) | 5 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 318 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 5/1 |
| Plan Shape | Rectangular |
| Base Dimensions | 81' x 204'-10" |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1968 |
| Instrumentation | 1977. 9 accelerometers, on 3 levels in the building. |
| Vertical Load Carrying System | 6" RC slabs supported by cast-in-place RC beams at 6' on centers; load bearing 12" concrete wall. |
| Lateral Force Resisting System | RC shear walls in both directions. |
| Foundation Type | 60 piles under bearing walls |
| Remarks | -- |
