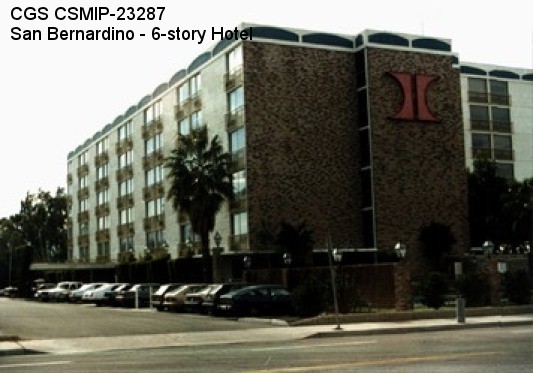

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| San Bernardino - 6-story Hotel |
| CGS - CSMIP Station 23287 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0655 N |
| Longitude | 117.2802 W |
| Elevation (m) | 303 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 264 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 6/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 58' x 172'-4" |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1970 |
| Instrumentation | 1976. 9 accelerometers, on 3 levels in the building. |
| Vertical Load Carrying System | 5.5" and 7.5" thick precast concrete floor panels; 8" RC interior and exterior walls in transverse direction; 9" RC exterior walls with window opening in longitudinal direction. |
| Lateral Force Resisting System | RC walls, in both directions |
| Foundation Type | Continuous spread footings under each wall |
| Remarks | -- |
