Information for Strong-Motion Station

Los Angeles - 156-ft Campanile

CGS - CSMIP Station 24216

Earthquakes recorded by this station

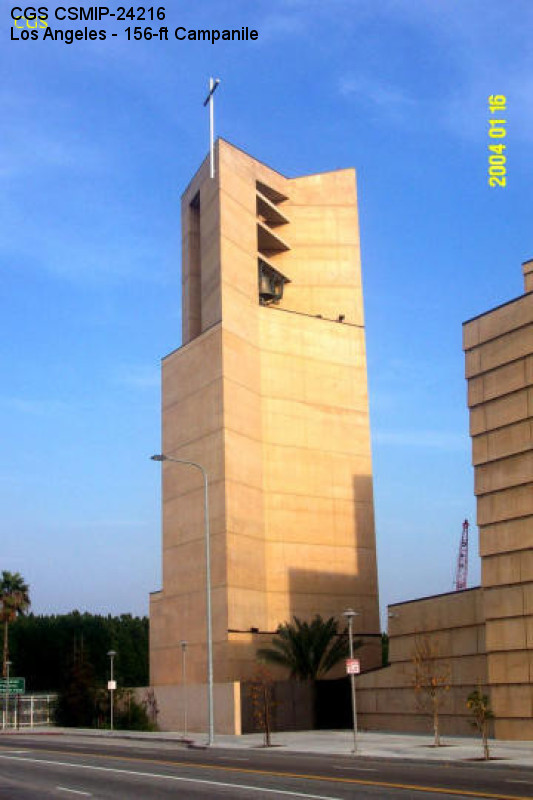

(Station Photograph - click to enlarge)	(Sensor Layout - click to see PDF File)



Latitude	34.0586 N
Longitude	118.2455 W
Elevation (m)	118
Site Geology	Rock (sedimentary)
Vs30 (m/sec)	392 (measured)
Site Class	C
Remarks/Notes	Site information sources



No. of Stories above/below ground	13/0
Plan Shape	Rectangular
Base Dimensions	53' x 61.5'
Typical Floor Dimensions	44' x 51'
Design Date	1999
Instrumentation	2002. 8 accelerometers at 3 levels in the building.



Vertical Load Carrying System	concrete slab (8" thick) on steel beams supported by concrete walls and base isolators.
Lateral Force Resisting System	Concrete shear walls isolated at the foundation with 4 friction pedulum bearings.
Foundation Type	Continuous concrete spread footings and belled caissons.
Remarks	Tension restraint systems were installed on the friction pendulum bearings to resist uplift. The isolation system can accommodate 29" of lateral displacement.
