| Information for Strong-Motion Station |
| Los Angeles - 8-story County Med Ofc Bld |
| CGS - CSMIP Station 24249 |
| Earthquakes recorded by this station |
| |

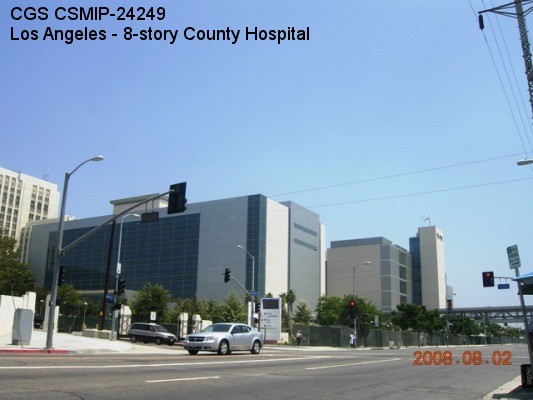

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0582 N |
| Longitude | 118.2086 W |
| Elevation (m) | 105 |
| Site Geology | Rock (sandstone) |
| Vs30 (m/sec) | 420 (inferred) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 8/partial |
| Plan Shape | Rectangular |
| Base Dimensions | 300 x 165 ft |
| Typical Floor Dimensions | 300 x 135 ft |
| Design Date | 2002 |
| Instrumentation | 2008, 12 accelerometers, 4 levels. |
| Vertical Load Carrying System | lightweight concrete slabs over metal decks supported by steel beams and columns. |
| Lateral Force Resisting System | Steel eccentrically-braced frames. |
| Foundation Type | Concrete spread footings tied with concrete grade beams. |
| Remarks | The building was designed and instrumented according to the 1999 Los Angeles County Building Code. |
