| Information for Strong-Motion Station |
| Burbank - 6-story Commercial Bldg |
| CGS - CSMIP Station 24370 |
| Earthquakes recorded by this station |
| |

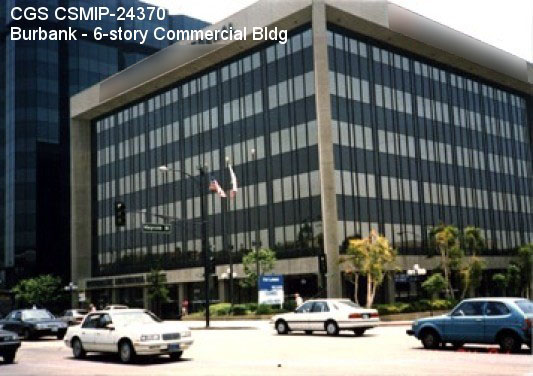

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.1849 N |
| Longitude | 118.3092 W |
| Elevation (m) | 198 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 431 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 6/0 |
| Plan Shape | Square |
| Base Dimensions | 120' x 120' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1976 |
| Instrumentation | 1980: 13 accelerometers on 4 levels in the building; 2025: Reinstrumentation of the building. 23 accelerometers on 7 levels in the building. |
| Vertical Load Carrying System | Steel beams and columns 3-1/4" concrete slab over metal deck. |
| Lateral Force Resisting System | Moment resisting steel frames on perimeter walls. |
| Foundation Type | Concrete caissons (+/- 32' long) |
| Remarks | -- |
