| CESMD |
| Information for Strong-Motion Station |
| Burbank - 10-story Residential Bldg |
| CGS - CSMIP Station 24385 |
| Earthquakes recorded by this station |
| Ambient Records for CE24385 |
| |

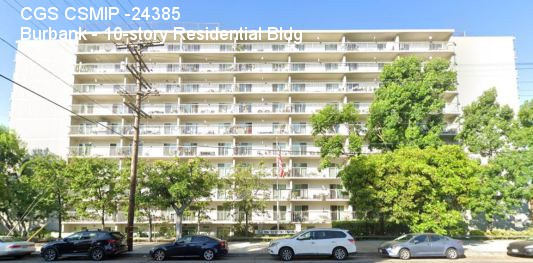

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.1870 N |
| Longitude | 118.3120 W |
| Elevation (m) | 200 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 431 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 10/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 75'-3 1/2" x 215'-5" |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1974 |
| Instrumentation | 1980. 16 accelerometers, on 4 levels in the building; 2025: Reinstrumentation of the building; 28 accelerometers on 8 levels in the building. |
| Vertical Load Carrying System | Precast and poured in place concrete floor slabs supported by precast concrete bearing walls. |
| Lateral Force Resisting System | Precast concrete shear walls in both directions. |
| Foundation Type | Concrete caissons (25' to 35' deep) under all bearing walls |
| Remarks | Dillon system building |
