| CESMD |
| Information for Strong-Motion Station |
| Pasadena - 3-story Computer Bldg |
| CGS - CSMIP Station 24460 |
| Earthquakes recorded by this station |
| |

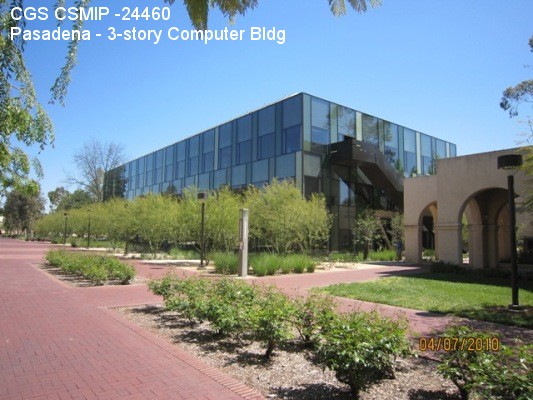

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.1398 N |
| Longitude | 118.1238 W |
| Elevation (m) | 234 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 389 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 3/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 174 x 88 ft |
| Typical Floor Dimensions | 174 x 88 ft |
| Design Date | 2007 |
| Instrumentation | 2010, 15 accelerometers on 4 levels, and 3 at a reference free-field site. |
| Vertical Load Carrying System | Concrete over steel deck supported by steel beams and columns. |
| Lateral Force Resisting System | Buckling restrained steel braced frames. |
| Foundation Type | Steel braced frames supported by continuous concrete footings with concrete grade beams. |
| Remarks | Structural design is based on the 2007 California Building Code. |
