| CESMD |
| Information for Strong-Motion Station |
| North Hollywood - 20-story Hotel |
| CGS - CSMIP Station 24464 |
| Earthquakes recorded by this station |
| |

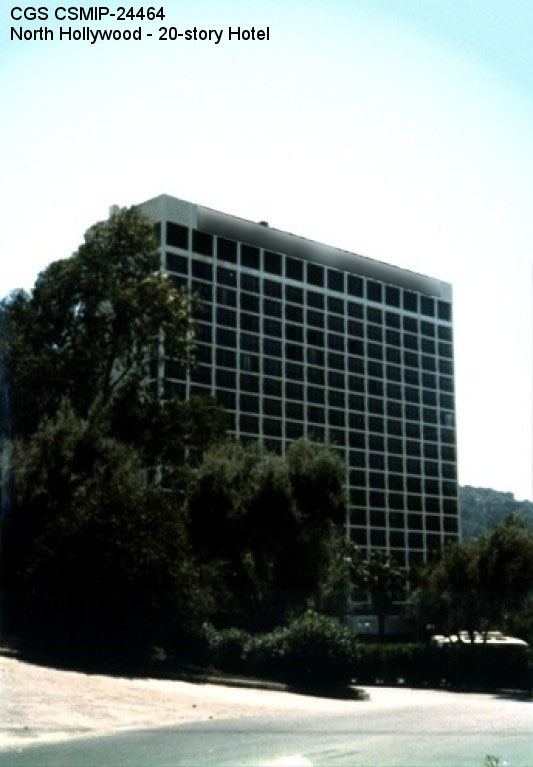

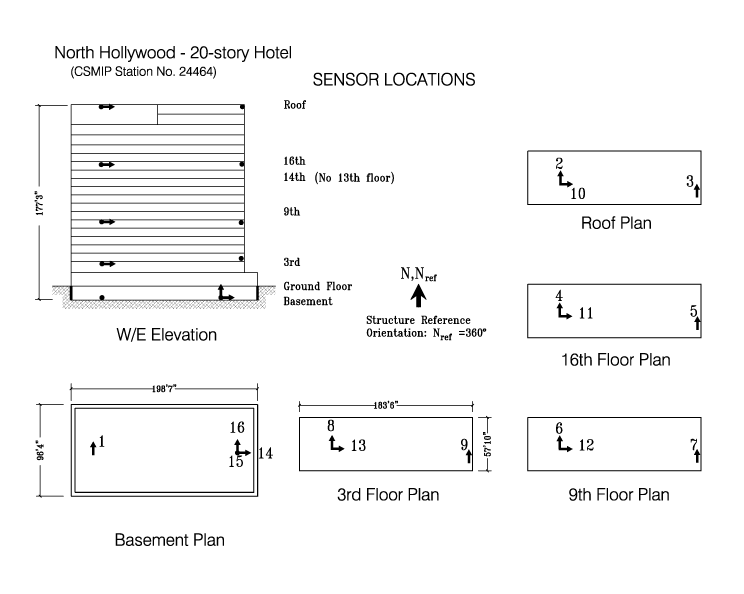

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.1374 N |
| Longitude | 118.3600 W |
| Elevation (m) | 209 |
| Site Geology | Rock (sandstone/shale) |
| Vs30 (m/sec) | 464 (inferred) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 20/1 |
| Plan Shape | Rectangular |
| Base Dimensions | 96'-4" x 198'-7" |
| Typical Floor Dimensions | 57'-10" x 183'-6" |
| Design Date | 1967 |
| Instrumentation | 1983. 16 accelerometers, on 5 levels in the building. |
| Vertical Load Carrying System | 4-1/2" - 6" concrete slab supported by reinforced concrete columns and beams. |
| Lateral Force Resisting System | Concrete ductile moment resisting frames. |
| Foundation Type | Spread footings. |
| Remarks | The building was designed according to the 1966 Los Angeles Building code. |
