| Information for Strong-Motion Station |
| Los Angeles - 7-story Univ. Hospital |
| CGS - CSMIP Station 24605 |
| Earthquakes recorded by this station |
| |

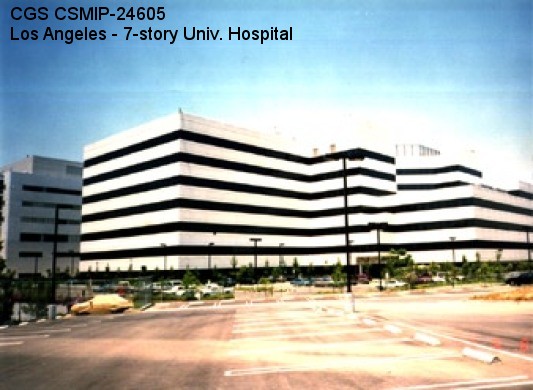

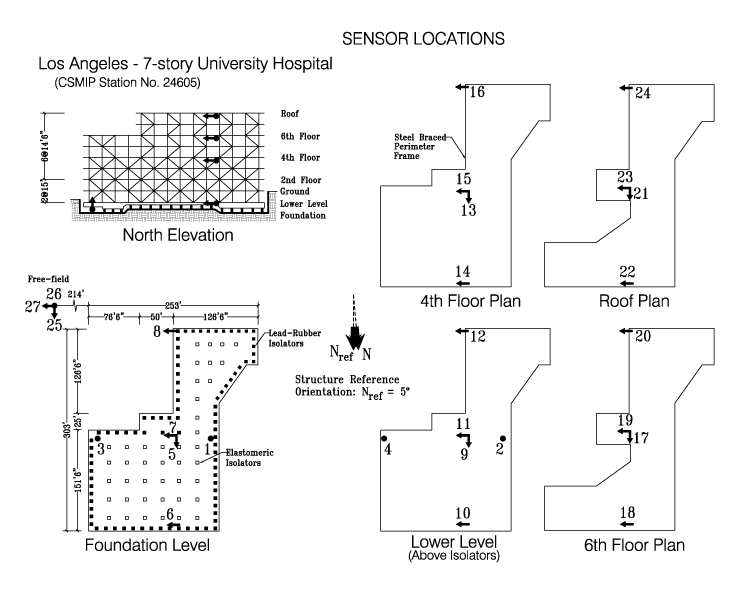

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0620 N |
| Longitude | 118.2015 W |
| Elevation (m) | 115 |
| Site Geology | Rock (sedimentary) |
| Vs30 (m/sec) | 423 (inferred) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 7/1 |
| Plan Shape | S-shaped |
| Base Dimensions | 363 x 253 ft (110.6 x 77.1 m) |
| Typical Floor Dimensions | 303 x 253 ft (92.4 x 77.1 m) |
| Design Date | 1988 |
| Instrumentation | 1991. 24 accelerometers, on 5 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Concrete slabs over steel decks supported by steel frames and rubber isolators. |
| Lateral Force Resisting System | Diaginally braced perimeter steel frames isolated by lead-rubber and elastomeric isolators. |
| Foundation Type | Continuous and isolated concrete spread footings. |
| Remarks | Funding for the building instrumentation was provided by the owner as required by OSHPD. |
