| CESMD |
| Information for Strong-Motion Station |
| Los Angeles - 6-story Parking Structure |
| CGS - CSMIP Station 24655 |
| Earthquakes recorded by this station |
| |

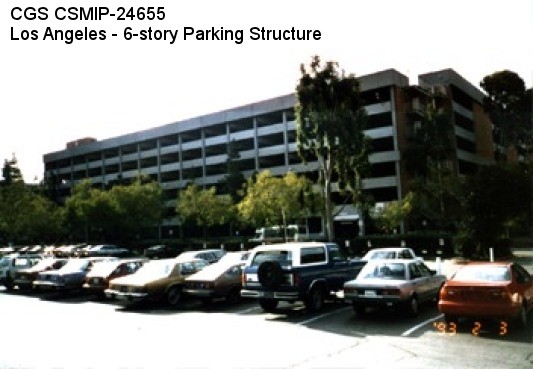

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0211 N |
| Longitude | 118.2903 W |
| Elevation (m) | 53 |
| Site Geology | Deep alluvium |
| Vs30 (m/sec) | 268 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 6/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 259 x 306 ft (92.4 x 96.9 m) |
| Typical Floor Dimensions | 259 x 306 ft (73.2 x 33.5 m) |
| Design Date | 1975 & 1978 |
| Instrumentation | 1993. 14 accelerometers, on 3 levels in the building. |
| Vertical Load Carrying System | Concrete slabs supported on precast concrete beams and columns. |
| Lateral Force Resisting System | Six cast-in-place concrete shear walls in the N/S direction and two cast-in-place concrete shear walls in E/W direction. |
| Foundation Type | Drilled concrete caissons. |
| Remarks | -- |
