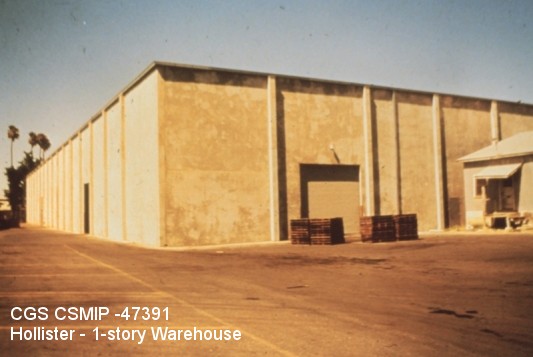

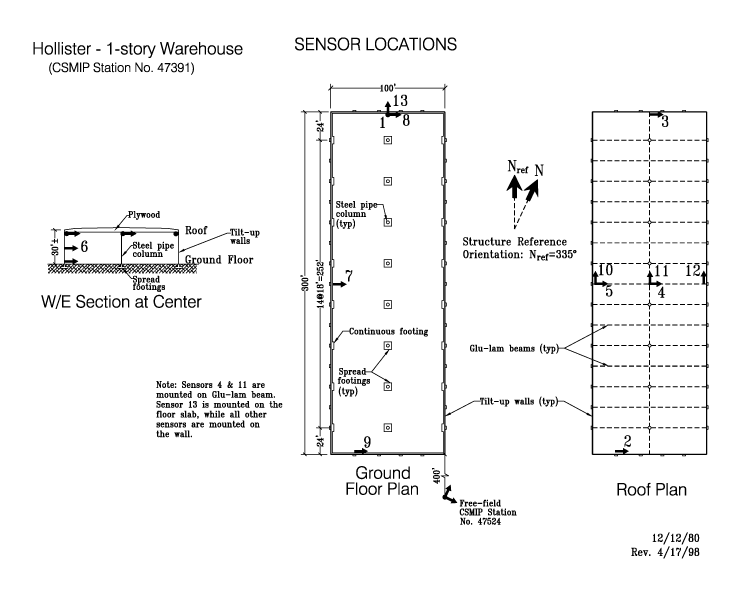

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Hollister - Glorietta Warehouse |
| CGS - CSMIP Station 47391 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 36.8503 N |
| Longitude | 121.3990 W |
| Elevation (m) | 88 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 282 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 1/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 100' x 280' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1979 |
| Instrumentation | 1980. 13 accelerometers, on 2 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Glulam beams, wood joists, interior steel pipe columns and tilt up concrete bearing walls. |
| Lateral Force Resisting System | Concrete tilt-up shear walls on perimeter and plywood roof diaphragm. |
| Foundation Type | Concrete spread footings |
| Remarks | -- |
