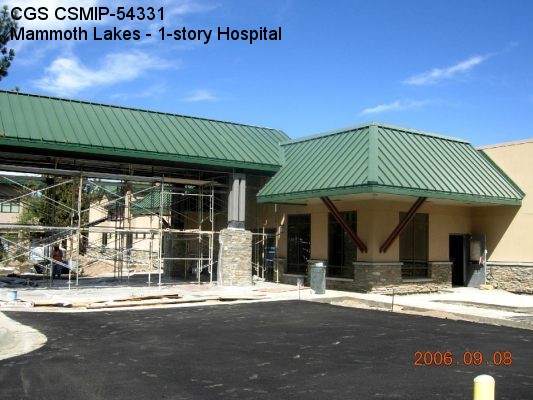

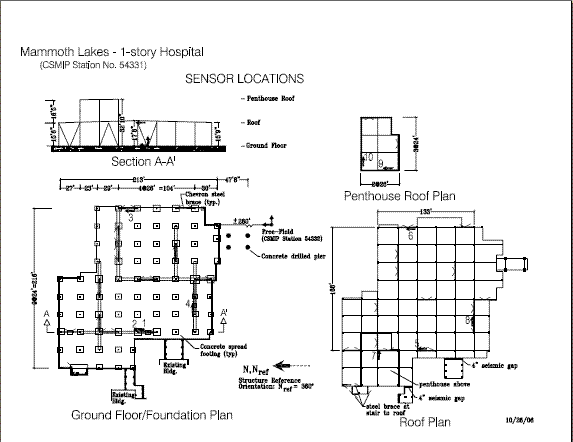

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Mammoth Lakes - 1-story Hospital |
| CGS - CSMIP Station 54331 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.6440 N |
| Longitude | 118.9627 W |
| Elevation (m) | 2389 |
| Site Geology | Alluvium (glacial deposits) |
| Vs30 (m/sec) | 347 (inferred) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 1/0 (with partial penthouse) |
| Plan Shape | Irregular |
| Base Dimensions | 213 x 216 ft |
| Typical Floor Dimensions | 213 x 216 ft |
| Design Date | 2004 |
| Instrumentation | 2006, 10 accelerometers on 3 levels. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Lightweight concrete slabs over steel decks supported by steel beams and columns. |
| Lateral Force Resisting System | Steel Chevron-braced frames in both directions with 3.25" concrete roof diaphragm. |
| Foundation Type | Steel columns supportedby concrete spread footings with tie beams. |
| Remarks | This building is instrumented as part of OSHPD/CSMIP agreement to instrument hospitals in California. |
