| CESMD |
| Information for Strong-Motion Station |
| Berkeley - 5-story Parking Structure |
| CGS - CSMIP Station 58196 |
| Earthquakes recorded by this station |
| |

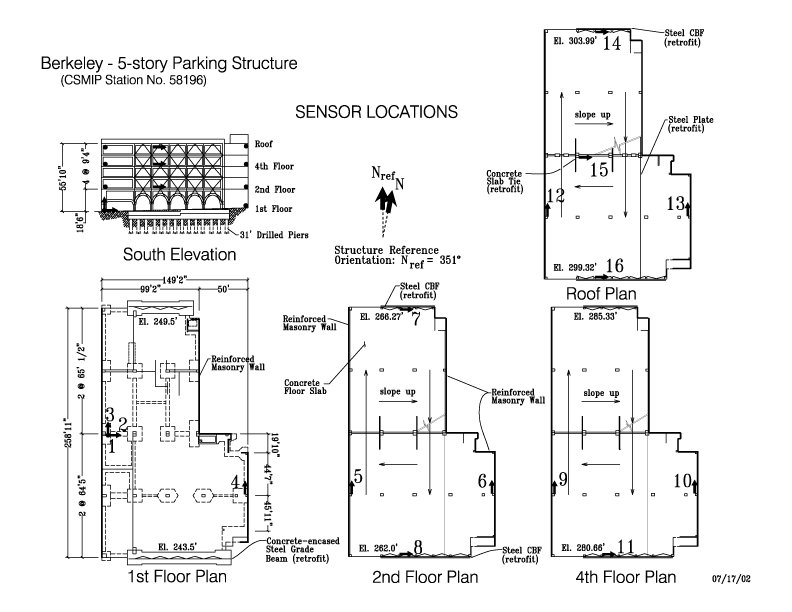

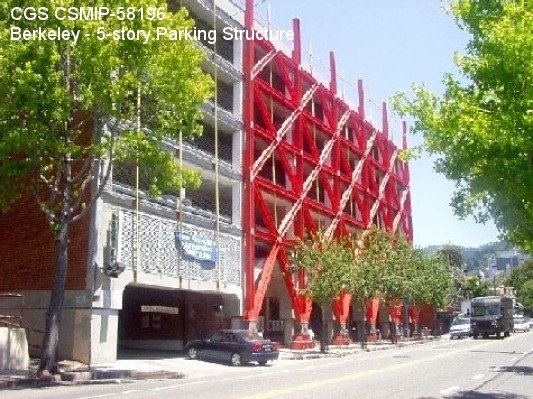

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.8668 N |
| Longitude | 122.2595 W |
| Elevation (m) | 77 |
| Site Geology | Shallow alluvium over rock |
| Vs30 (m/sec) | 351 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 5/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 149 x 259 ft (45.4 x 78.9 m) |
| Typical Floor Dimensions | 149 x 259 ft (45.4 x 78.9 m) |
| Design Date | 1965 & 1992 (retrofit) |
| Instrumentation | 2002, 16 accelerometers, on 4 levels. |
| Vertical Load Carrying System | Post-tensioned concrete slabs supported on concrete frames. |
| Lateral Force Resisting System | Exterior reinforced masonry shear walls in the N-S direction and exterior concentrically braced frames in the E-W direction (strengthened). |
| Foundation Type | Drilled concrete piers. |
| Remarks | The building was seismically strengthened in 1996. |
