| CESMD |
| Information for Strong-Motion Station |
| Piedmont - 3-story School Office Bldg |
| CGS - CSMIP Station 58334 |
| Earthquakes recorded by this station |
| |

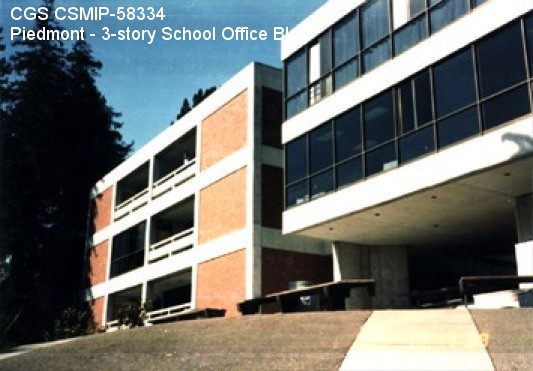

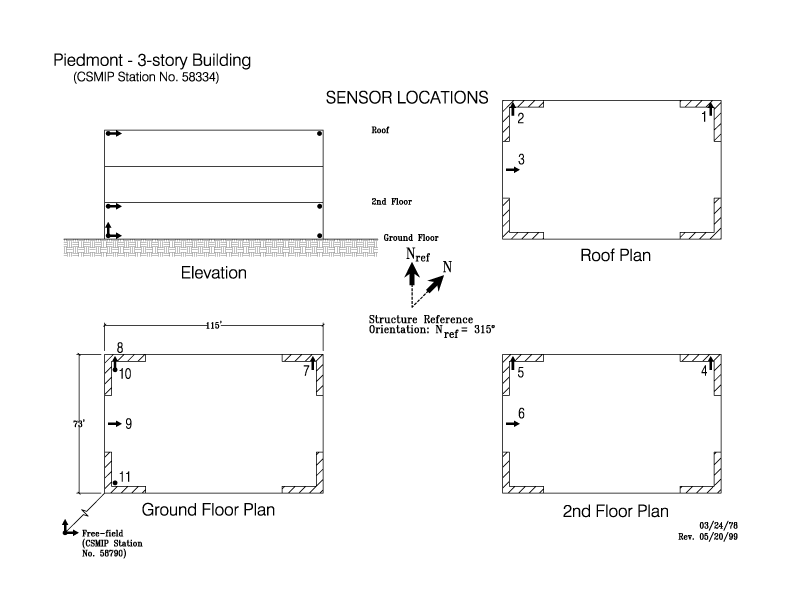

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.8227 N |
| Longitude | 122.2347 W |
| Elevation (m) | 79 |
| Site Geology | Rock (serpentinite) |
| Vs30 (m/sec) | 895 (inferred) |
| Site Class | B |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 3/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 73' x 115' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1973 |
| Instrumentation | 1978. 11 accelerometers, on 3 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | RC frame supporting concrete pan joist system. |
| Lateral Force Resisting System | 12" thick RC shearwalls, length 16'-3" center to center of columns, located at 4 corners in transverse and longitudinal direction. |
| Foundation Type | Spread footings interconnected by RC tie beams. |
| Remarks | -- |
