| Information for Strong-Motion Station |
| San Francisco - 301 Mission Tower |
| CGS - CSMIP Station 58411 |
| Earthquakes recorded by this station |
| Ambient Records for CE58411 |
| |

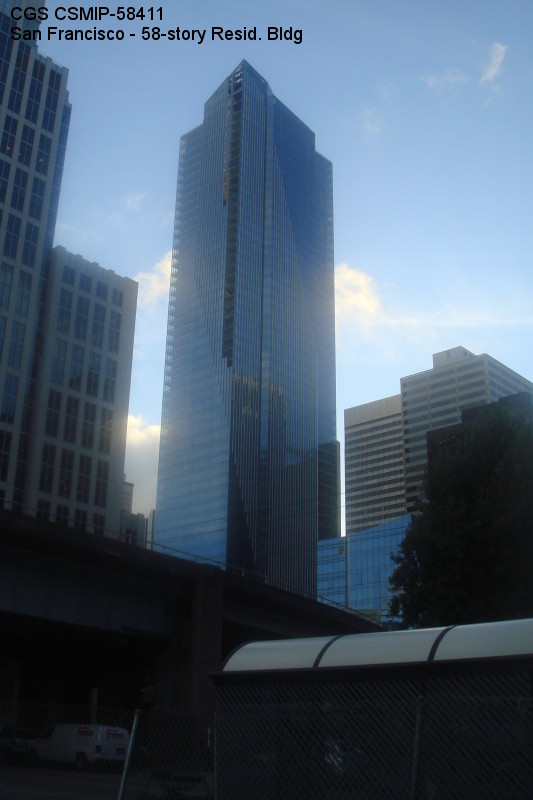

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7904 N |
| Longitude | 122.3961 W |
| Elevation (m) | -- |
| Site Geology | Deep alluvium over rock (Franciscan) |
| Vs30 (m/sec) | 243 (measured) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 58/1 |
| Plan Shape | Rectangular |
| Base Dimensions | 142 x 99 ft |
| Typical Floor Dimensions | 142 x 99 ft |
| Design Date | 2006 |
| Instrumentation | 2009, 32 accelerometers, 10 levels. |
| Vertical Load Carrying System | Concrete slab supported by reinforced concrete columns and core shear walls. |
| Lateral Force Resisting System | Dual system comprised of a concrete shear wall core with outriggers and special concrete moment frames on the perimeter. |
| Foundation Type | Prestressed precast concrete piles (80' long) with a 10' thick reinforced concrete pile cap. |
| Remarks | Adjacent 12-story building is also instrumented. |
