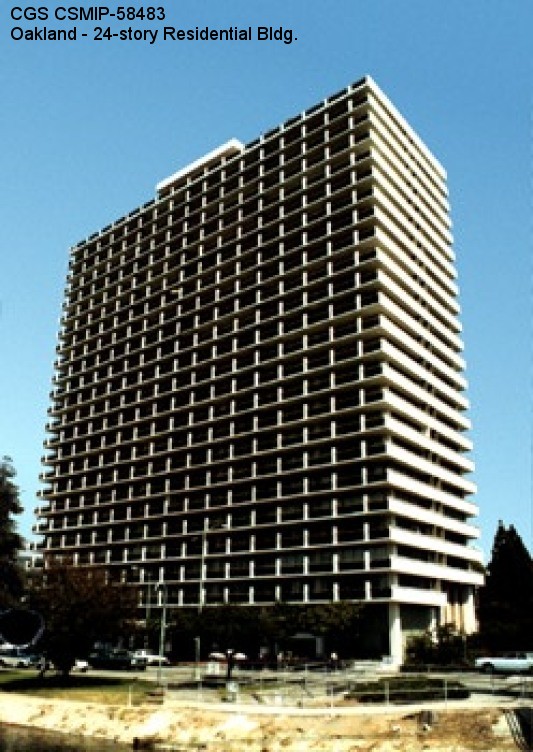

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Oakland - 24-story Residential Bldg. |
| CGS - CSMIP Station 58483 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7988 N |
| Longitude | 122.2582 W |
| Elevation (m) | 4 |
| Site Geology | Thin fill over deep alluvium |
| Vs30 (m/sec) | - - |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 24/0 |
| Plan Shape | Trapezoidal |
| Base Dimensions | 211' x 497' (Floors 1-3) |
| Typical Floor Dimensions | 211' x 78' (Floors 4-24) |
| Design Date | 1964 |
| Instrumentation | 1984. 16 accelerometers, on 5 levels in the building. |
| Vertical Load Carrying System | Reinforced Concrete Floor and Roof Slab on reinforced concrete columns. |
| Lateral Force Resisting System | Reinforced Concrete Floor and Roof Diaphragms with Multiple concrete shear walls. |
| Foundation Type | Concrete mat foundation. |
| Remarks | -- |
