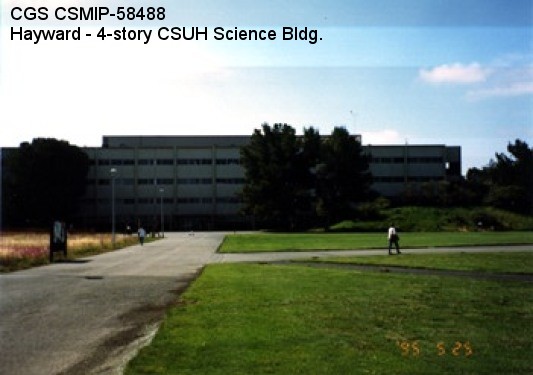

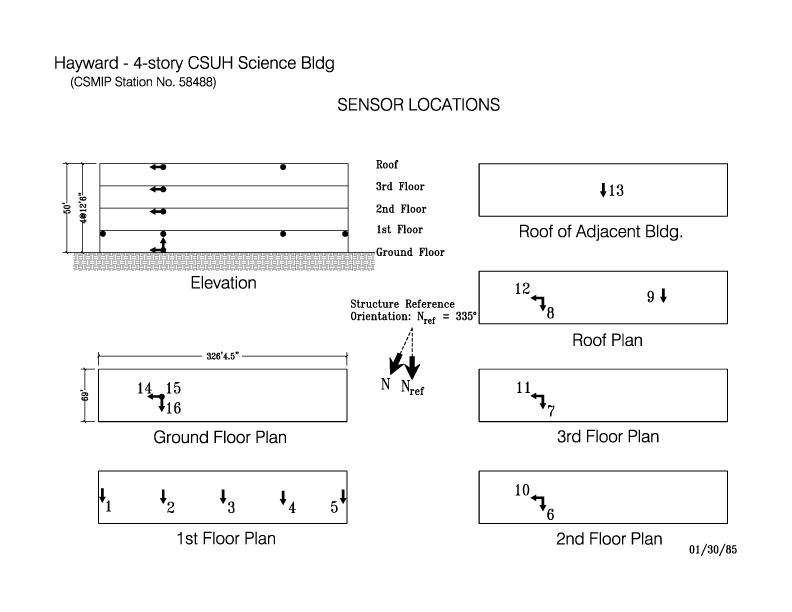

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Hayward - 4-story CSUH Science Bldg. |
| CGS - CSMIP Station 58488 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.6563 N |
| Longitude | 122.0540 W |
| Elevation (m) | 167 |
| Site Geology | Rock (igneous) |
| Vs30 (m/sec) | 517 (measured) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 4/0 |
| Plan Shape | Rectangular |
| Base Dimensions | 69' x 326' |
| Typical Floor Dimensions | Same as base dimensions |
| Design Date | 1961 |
| Instrumentation | 1984. 16 accelerometers, on 5 levels in the building. 1 accelerometer on roof of adjacent building. |
| Vertical Load Carrying System | Concrete slab supported on interior and exterior bearing walls and interior beams and columns of reinforced concrete. |
| Lateral Force Resisting System | Concrete floor and roof diaphragms on interior and exterior reinforced concrete shear walls. |
| Foundation Type | Combined footings and spread footings |
| Remarks | 1st floor partially buried on 3 sides, discontinuous shear walls above 1st floor, and adjacent building of similar construction. |
