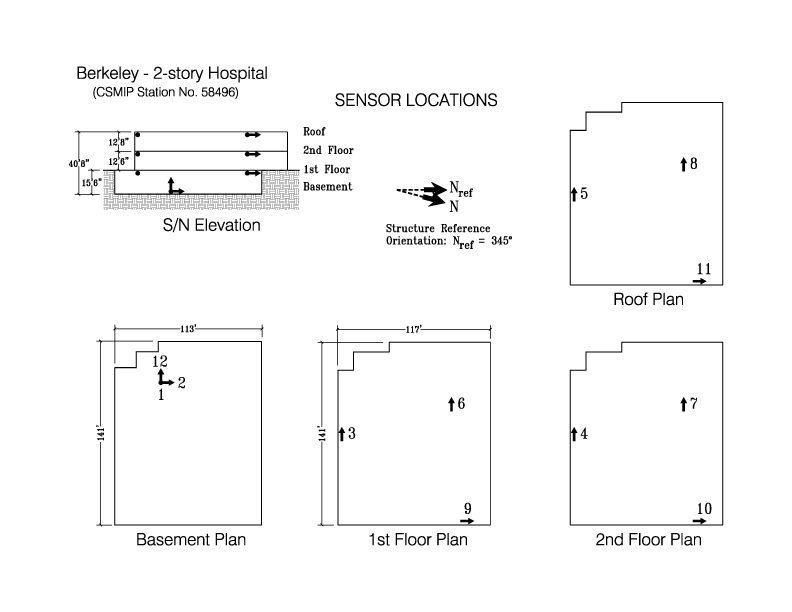

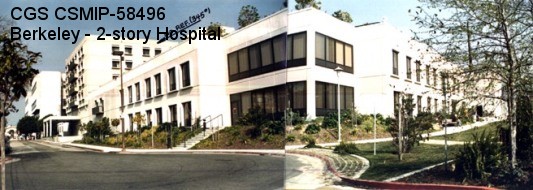

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Berkeley - 2-story Hospital |
| CGS - CSMIP Station 58496 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.8548 N |
| Longitude | 122.2571 W |
| Elevation (m) | 62 |
| Site Geology | Alluvium |
| Vs30 (m/sec) | 342 (inferred) |
| Site Class | D |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 2/1 |
| Plan Shape | Rectangular withsetbacks |
| Base Dimensions | 115' x 135' |
| Typical Floor Dimensions | 105' x 135' |
| Design Date | 1984 |
| Instrumentation | 1985. 12 accelerometers, on 4 levels in the building. |
| Vertical Load Carrying System | Concrete slab on metal forms supported on steel beams and columns. |
| Lateral Force Resisting System | Concrete floor and roof diaphragms and eccentrically braced steel frames |
| Foundation Type | 3' concrete mat foundation. |
| Remarks | -- |
