| Information for Strong-Motion Station |
| San Francisco - 6-story Univ Hospital |
| CGS - CSMIP Station 58572 |
| Earthquakes recorded by this station |
| |

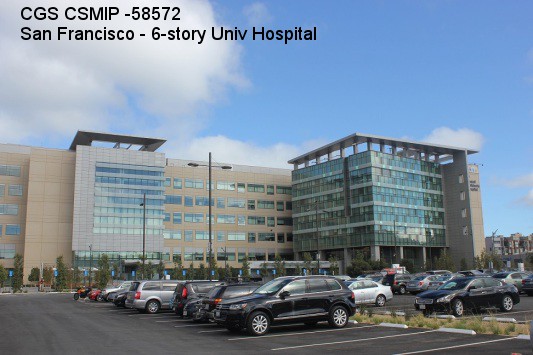

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7652 N |
| Longitude | 122.3897 W |
| Elevation (m) | 6 |
| Site Geology | Shallow fill/alluvium over rock |
| Vs30 (m/sec) | 731 (measured) |
| Site Class | C |
| Remarks/Notes | Site information sources |
| No. of Stories above/below ground | 6/0 |
| Plan Shape | Rectangular w/ irregularities |
| Base Dimensions | 380 x 480 ft |
| Typical Floor Dimensions | 380 x 420 ft |
| Design Date | 2010 |
| Instrumentation | 2016, 18 accelerometers on 4 levels. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Concrete fill over metal decks supported by steel beams and columns. Setbacks occur at Levels 3, 4 and 5. Building is separated from adjacent buildings by seismic joints. |
| Lateral Force Resisting System | Steel buckling-restrained braced frames with moment resisting beam-column connections in both directions. Steel braced frames are located at the perimeter and interior. |
| Foundation Type | Concrete pile caps with 18" diameter auger cast piles (20 - 85 feet long). Pile caps are tied together with concrete grade beams. |
| Remarks | This building was designed in accordance with the 2007 California Building Code, and was instrumented as part of OSHPD/CSMIP agreement to instrument hospitals in California. |
