| CESMD |
| Information for Strong-Motion Station |
| Alameda - Alameda Landing Wharf |
| CGS - CSMIP Station 58717 |
| Earthquakes recorded by this station |
| |

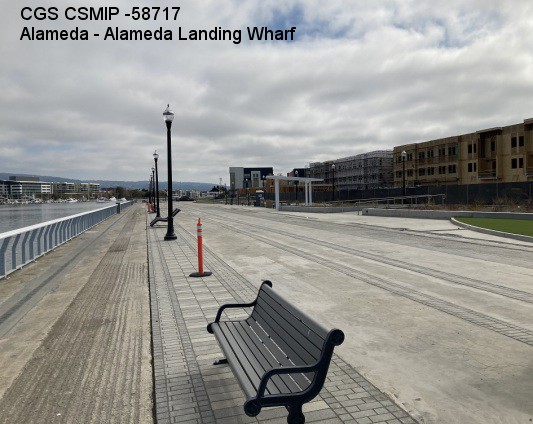

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7919 N |
| Longitude | 122.2802 W |
| Elevation (m) | 4 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Spans | -- |
| Plan Shape | Irregular |
| Total Length | 1386.5 ft |
| Width of Deck | 88 ft |
| Construction Date | 2022 |
| Instrumentation | 2022, 7 accelerometers on the wharf deck, 6 accelerometers on improved soil (deep soil mixing) and 3 accelerometers on unimproved soil. |
| Superstructure Type | Cast-in-place concrete deck of varying thickness (10"-24"). |
| Substructure Type | n/a |
| Foundation Type | 16" & 18" square precast concrete piles with pile caps. |
| Remarks | Instrumentation was recommended by San Francisco Bay Conservation and Development Commission (BCDC). Funding for instrumentation was provided by the owner. CSMIP provided technical specifications and assistance in instrumentation. |
