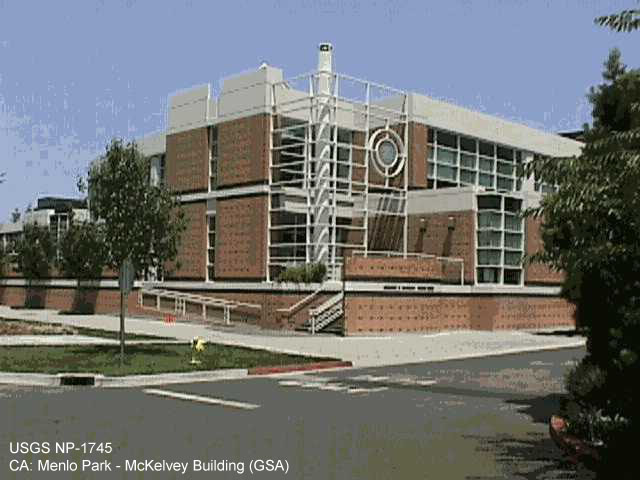

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| Menlo Park; McKelvey, Bldg 15 |
| NSMP Station 1745 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.4570 N |
| Longitude | 122.1703 W |
| Elevation (m) | 16 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 2/1 |
| Plan Shape | L-shaped |
| Base Dimensions | -- |
| Typical Floor Dimensions | -- |
| Design Date | 1996 |
| Instrumentation | 1998, 9 accelerometers on two levels of building. There is a free-field station with 3 channels close to this building, which is located inside a one-story steel building. |
| Vertical Load Carrying System | -- |
| Lateral Force Resisting System | Steel moment-resisting frame |
| Foundation Type | -- |
| Remarks | A seismic joint separates plan into two rectangular sections perpendicular to each other |
