| CESMD |
| Information for Strong-Motion Station |
| CA San Francisco - VAMC, Bldg 200 |
| NSMP Station 1875 |
| Earthquakes recorded by this station |
| |

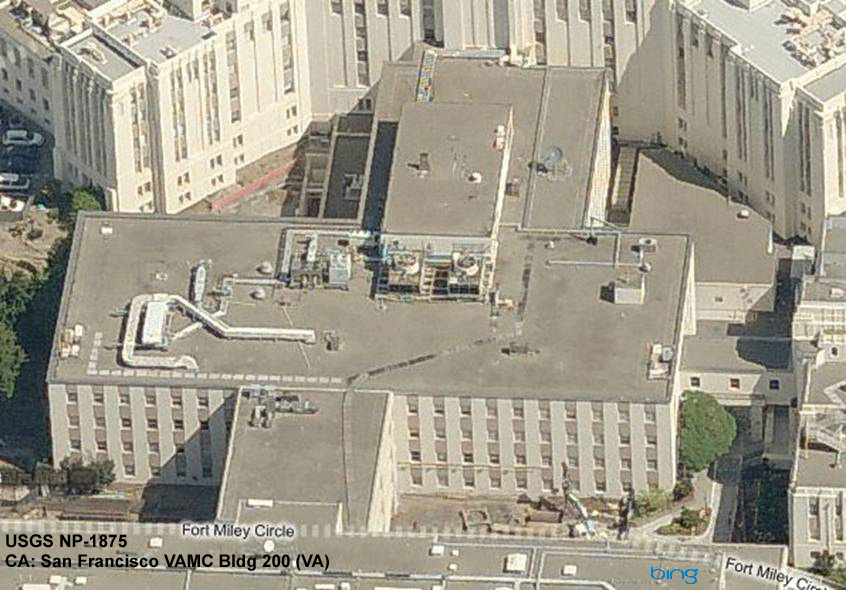

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 37.7824 N |
| Longitude | 122.5049 W |
| Elevation (m) | 107 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 4-story reinforced concrete structure |
| Plan Shape | Irregular |
| Base Dimensions | 241'x206' |
| Typical Floor Dimensions | 241'x206' |
| Design Date | Initial Design-1962 |
| Instrumentation | 2010: 16 accelerometers on 6 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Reinforced concrete |
| Lateral Force Resisting System | Reinforced concrete |
| Foundation Type | Columns on isolated spread footings |
| Remarks | This building was instrumented as part of the VA/USGS Hospital Instrumentation Project. |
