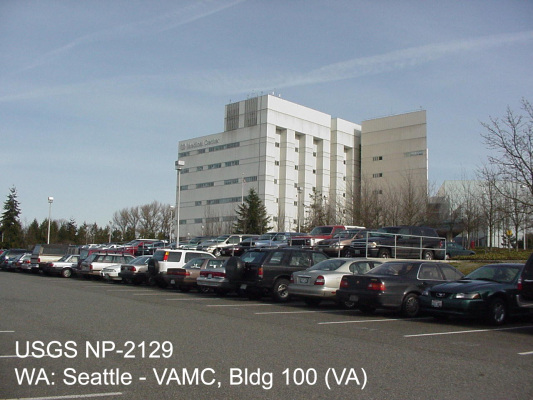

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| WA Seattle - VAMC |
| NSMP Station 2129 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 47.5620 N |
| Longitude | 122.3050 W |
| Elevation (m) | tbd |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 8-story steel structure |
| Plan Shape | Irregular |
| Base Dimensions | 173'x120' |
| Typical Floor Dimensions | 173'x120' |
| Design Date | Initial Design - 2008 |
| Instrumentation | 2010: 27 accelerometers on 8 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Steel moment frame |
| Lateral Force Resisting System | Steel moment resisting frame |
| Foundation Type | Columns attached to reinforced concrete wall footings |
| Remarks | This building was instrumented as part of the VA/USGS Hospital Instrumentation Project. |
