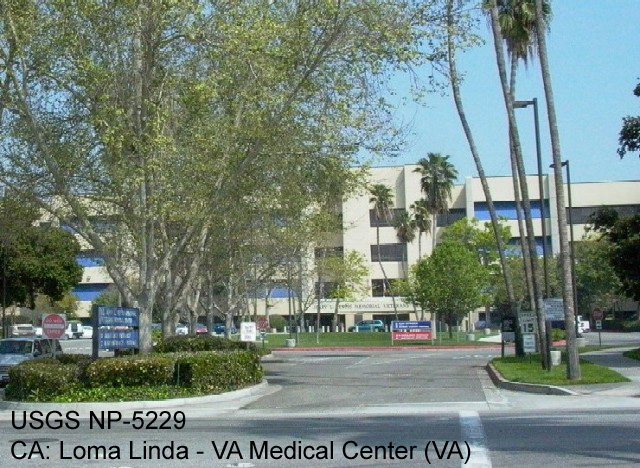

| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| CESMD |
| Information for Strong-Motion Station |
| CA Loma Linda - VAMC |
| NSMP Station 5229 |
| Earthquakes recorded by this station |
| |
| (Station Photograph - click to enlarge) | (Sensor Layout - click to see PDF File) |
| Latitude | 34.0487 N |
| Longitude | 117.2512 W |
| Elevation (m) | 356 |
| Site Geology | |
| Vs30 (m/sec) | |
| Site Class |
| No. of Stories above/below ground | 5-story reinforced concrete structure |
| Plan Shape | Irregular |
| Base Dimensions | 601'x513' |
| Typical Floor Dimensions | 601'x513' |
| Design Date | -- |
| Instrumentation | 2010: 21 accelerometers on 6 levels in the building. 3 accelerometers at a reference free-field site. |
| Vertical Load Carrying System | Reinforced Concrete |
| Lateral Force Resisting System | Reinforced Concrete |
| Foundation Type | -- |
| Remarks | This building was instrumented as part of the VA/USGS Hospital Instrumentation Project. |
