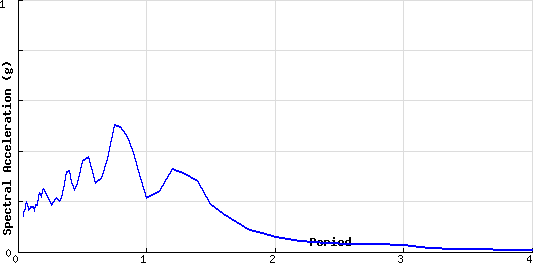

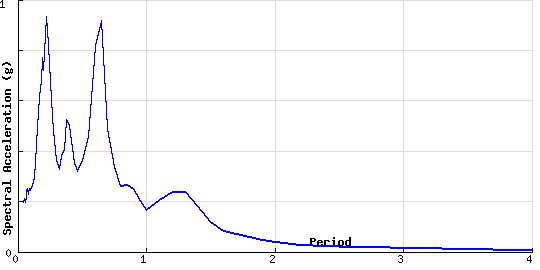

Response Spectra Station: San Bernardino, CA - I10/215 Interchange Bridge Station Owner: California Strong Motion Instrumentation Program Station Latitude & Longitude: 34.0640, -117.2960 Earthquake: Northridge Hypocentral Distance: 117.5 km Processing Info: CSMIP (Use the back button on your browser to return to the previous page)  Reconfigure Plots: % Damping 0251020 Accleration Units cm/s/s g Max Period (sec) Scale Factor for Data Overlay response spectrum:   None   UBC 1997 Help   Ca   Cv   IBC 2000   or    Ground-motion Help   SDS   SD1   Generic design spectrum Help   Max   Ca   T1   T2   T3  Component: 90 Hinge nr Bent 14, E. side  PGA: 245.60 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 14, W. side  PGA: -388.90 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 11, E. side  PGA: -235.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Hinge nr Bent 11, E. side  PGA: -89.00 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 11, W. side  PGA: 176.10 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Hinge nr Bent 11, W. side  PGA: -116.70 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 10, E. side  PGA: -146.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 10, W. side  PGA: -138.20 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Hinge nr Bent 8, S. side  PGA: 167.10 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Hinge nr Bent 8, N. side  PGA: -159.10 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 8, E. side  PGA: 148.80 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Hinge nr Bent 8, E. side  PGA: -75.20 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 8, W. side  PGA: 153.40 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Hinge nr Bent 8, W. side  PGA: 81.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Bent 8, Deck, S. side  PGA: 146.00 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Bent 8, Deck, N. side  PGA: -127.10 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Bent 8, Footing, S. side  PGA: 126.30 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Bent 8, Footing, S. side  PGA: -37.00 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Bent 8, Footing, S. side  PGA: 73.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Bent 8, Footing, N. side  PGA: -32.40 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Deck between Bents 7 & 8, mid-span  PGA: -195.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up Bent 7, Deck  PGA: -110.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Deck between Bents 5 & 6, mid-span  PGA: 116.00 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 3, E. side  PGA: 174.70 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Hinge nr Bent 3, W. side  PGA: 146.60 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Hinge nr Bent 3, W. side  PGA: 169.60 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 Bent 3, Footing  PGA: -97.10 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 Bent 3, Footing  PGA: -60.50 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 North Abutment  PGA: -132.00 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 North Abutment  PGA: -152.70 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up North Abutment  PGA: 51.90 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 0 West Abutment  PGA: -146.40 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: 90 West Abutment  PGA: 102.60 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec    Component: Up West Abutment  PGA: 55.90 cm/s/s        accelerogram bandpass filtered with ramps at .150- .300 and 46.00-50.00 cyc/sec   Home + Login + Download + About Us + Contact Earthquakes + stations + Search + Map + Advanced Search
